Vena Stones
Beautiful, Canadian-made screw-on stone siding

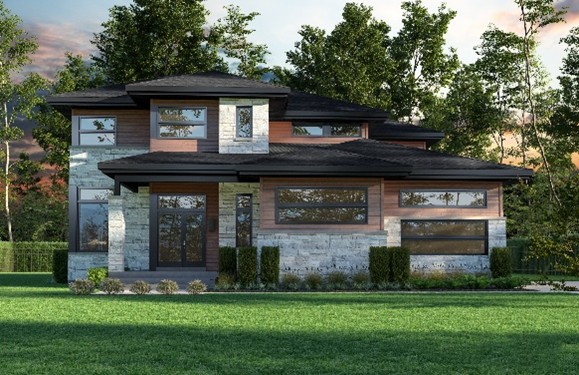

VENA screw-on stone was created so that anyone can complete a masonry project themselves in four easy steps and at a great price. It clads houses with an authentic stone appearance and zero mess! VENA screw-on stone harmonizes with any type of architecture. With this panel it also creates its own drainage so no need to worry about water damage which will save you time and money on the install. Adopt this innovative solution and beautify your property!
Easy 4 step installation process:
1-grab your Vena stone panel
2-slide your clip into the back channel of the panel
3-lock your panel into the starter strip or the panel below with their premium tongue and groove technology
4-screw the Vena stone panel onto the wall
Panel Dimensions
8” high x 22.5” long x 2” deep-which equals 1.25 sqft per panel (corners and flats are same dimensions)
Corners vs Flats

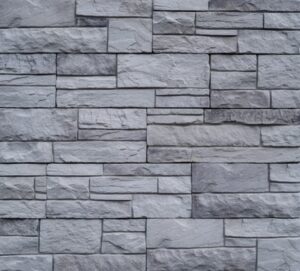

Flats
Flats are straight edge so they can fit nice and tight to the panel next to it and create the beautiful look you see here.

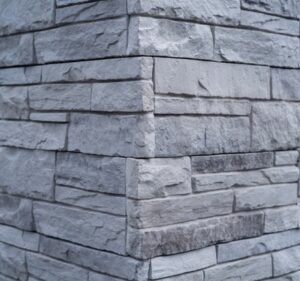

Corners
Corners are beautiful profiled on one side so it can create this authentic finished look like you see here. A flat piece will butt up to the corner to create your next row.
Wall Preparation
3 Easy Step Installation
 |
 |
 |

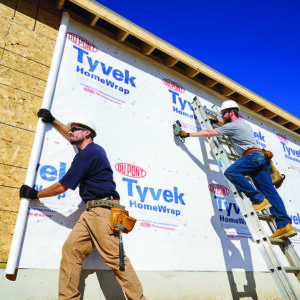

| Prepare the surface
VenaStone is installed over plywood with a 1/2″ minimum thickness or OSB substrate with 7/16″ minimum thickness. Install over water resistant barrier |

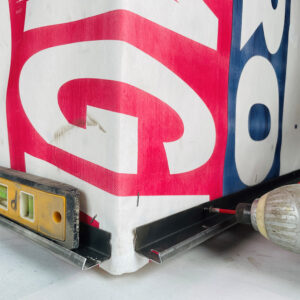

Install Starter Strip Install starter strip perfectly level at the base of your installation.
|
Fasten the VenaStone Starting with outside corners
|
Warranty
Vena stones backs its products with a 50 year warranty if the stone is installed in accordance to the Vena Stones Installation guide which is available in the resources tab.
Profiles
Vena Stones has 2 distinct profiles which can be used in any build and will provide a beautiful masonry finish without many of the hassles of a traditional stone product. Both styles are beautiful in look and a great part of masonry is the zero maintenance once installed. Vena Stones styles are the Castlerock and Liverpool. Castlerock provides a more traditional stone look with a gorgeous chiseled profile while the Liverpool is a touch more moderns with its smaller more linear running stones with a 3-D look.

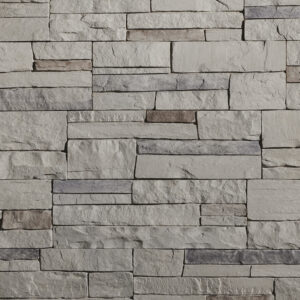

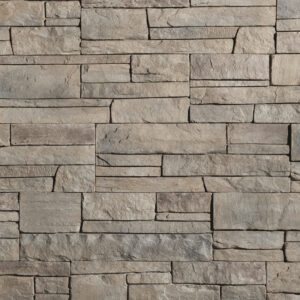

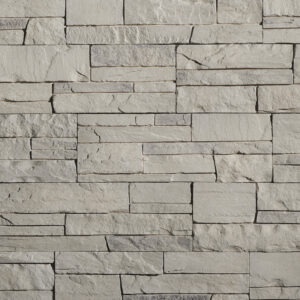

Castlerock

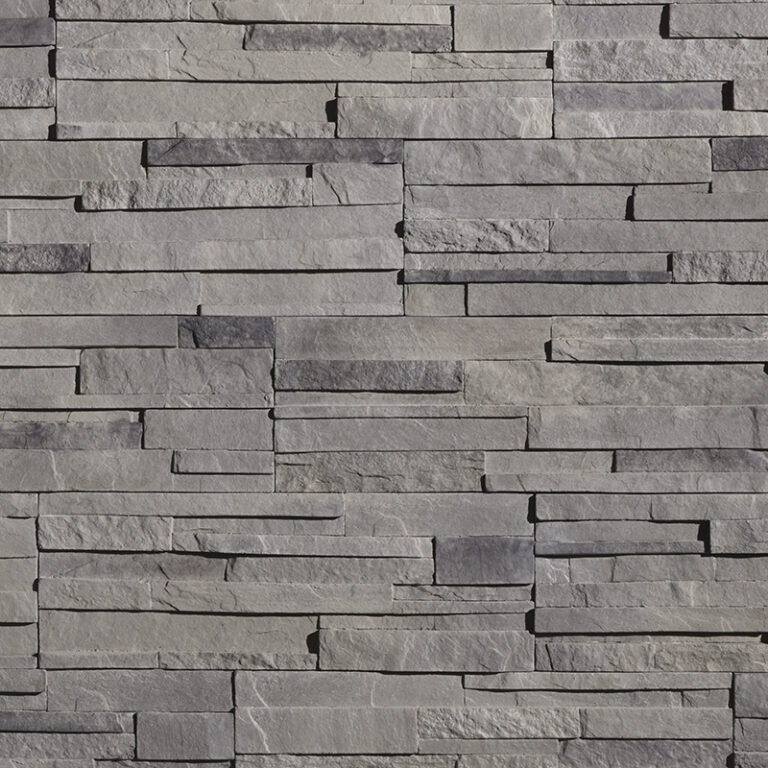

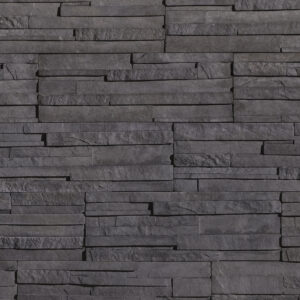

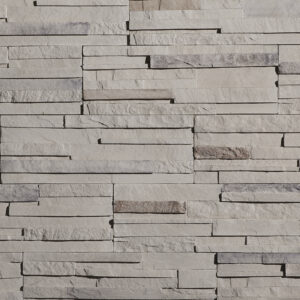

Liverpool
Accessories
Vena sills are beautifully chiseled and ready for install. The dimensions are 30” long by 3” high sloped to 2.5” at the front and 3” deep. They are also installed the same way as the stone with the patented vena clip and channel system. They come in 3 distinct colours which are shown below and are, from top to bottom, charcoal, iron and cream. These 3 colours will offer 3 great choices and blend with our stone colours seamlessly.
colours-top-charcoal, middle iron, bottom cream
Outlet plates
 |
 |
|

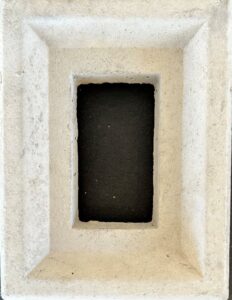

Rectangular Fixture |
Octagonal Fixture Dimension: 7 1/2″ x 9 1/2″ |
Vena Stones also offers outlet plates for electrical outlets or light fixtures. These come in the same 3 colours as the sills (charcoal, iron and cream) and are a great way to finish off any outlet boxes or lights. These are also installed with the patent Vena Stones clip and channel system.
Vena Stones Starter Strip
Vena Stones Starter strip is a 4 foot long piece that is used on the first row of any Vena Stones product install so the bottom panel can lock into it and maintain to drainage throughout the install. It is needed on the first row of any install which means the bottom of wherever the stone is being used as well as over window and door openings.
Colours
Vena Stones colours offer an array of sharp neutral tones that can be paired with any colours to create truly inspiring looks. We are adamant on making sure our colours maintain a natural and elegant appearance so they will always provide the timeless look of stone.
