Board & Batten Ultra-Premium Vinyl Siding
Board & Batten unique vertical profile design marries historical appeal with modern practicality.
Beautifully crafted with attention to detail, Board & Batten features a light roughsawn texture in a full array of elegant hues and distinctive darker colours.
Product Features
Extra-Heavy Wall Thickness
Heavy-duty .048” thickness provides superior rigidity, ensuring straight, smooth walls. Laboratory tested to withstand windloads up to 180 km/h (112 mph) for added peace of mind.
Design Versatility

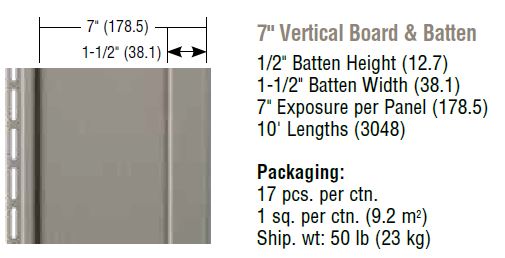

Featuring an authentically proportioned 7″ exposure with a 5-1/2″ board and 1-1/2″ batten strip, this quality-crafted panel works well as a whole-house exterior or as the perfect accent siding.

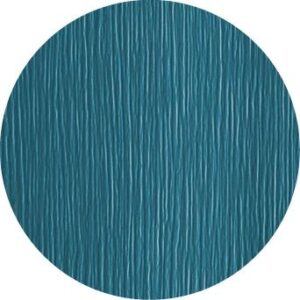

Light Roughsawn Emboss
Beautiful low-gloss finish achieves natural appeal and excellent durability; requires minimal upkeep.
Ideal for Today’s Lifestyle
Board and Batten’s heavy-duty construction and easy-care features require minimal upkeep. Each panel is solid color throughout, so it won’t chip, flake and blister like painted surfaces. It stands up strong to dings and abrasions, and unlike wood, it won’t rot and warp due to moisture.
Simple Upkeep
Board and Batten will dramatically reduce your exterior maintenance because it never needs to be painted. Just rinse occasionally with a garden hose to remove most airborne dust and dirt and restore your siding’s like-new beauty.
Investing in Your Home
Board and Batten not only will create an enjoyable, worry-free exterior, but will heighten your home’s curb appeal as well. And in today’s market, a beautiful, low-maintenance finish can greatly enhance the value of your home.
Fade Protection
Featuring richer, darker colours fortified with ChromaTrue fade-defying technology. Gentek vinyl siding carries a lifetime limited warranty against fading. See printed warranty for more details.
A Lifetime of Protection
Board and Batten ultra-premium vinyl siding is backed by a lifetime limited, non-prorated, transferable warranty with hail protection and lifetime fade coverage. For complete warranty information, including limitations, ask your dealer for a copy of the Gentek Ultra Premium siding warranty.
Gallery
Board and Batten Vinyl Siding Architectural Specifications
Produced to precise tolerances using formulated compounds specifically designed for
the plastic building products industry according to ASTM D4216, meeting or exceeding the following:
Property…………………………. ASTM Test …………Results
Tensile Strength (psi)…………… D-638………………….6,700
Modulus of Elasticity (psi) ……….D-638 …………………410,000
Izod Impact (70°F)………………. D-256 …………………3.6 (ft-lb/in of notch)
Izod Impact (32°F) ……………….D-256 …………………2.0 (ft-lb/in of notch)
Flexural Strength (psi) ………….D-790 …………………14,000
Coefficient of Linear……………. D-696 ………………….5.3 x 10-5 (mm/mm °C)
Expansion ……………………………………………………2.9 x 10-5 (in/in °F)
Deflection Temperature
Under Load 264 psi (°C) ……….D-648 ……………………73
PRODUCT PHYSICALS:
All siding products, soffit panels and accessories are made with solid colour throughout. The siding products and accessories meet or exceed the ASTM Specification for Rigid Poly Vinyl Chloride (PVC) Siding D3679. All soffit products and associated accessories meet or exceed the ASTM Specification for Rigid (Unplasticized) Poly Vinyl Chloride (PVC) Soffit D4477.
The siding and soffit compound meets Class 2 requirements and conforms to weathering performances as described in ASTM 3679.
Colour: Spectrophotometer controlled
Gloss: Gardner gloss meter controlled
Lock: Dimensionally controlled
All products meet or exceed ASTM 3679 thickness (nominal) requirements:
Board and Batten 0.048”
WARRANTY:
All Gentek vinyl siding brands carry a Lifetime Limited Warranty including fade and hail protection. Warranty is transferable if the home is sold. See printed warranty for complete details.
SOFFIT VENTILATION AREA:
Gentek soffit panels are designed to allow air circulation into the attic areas to aid in the reduction of excessive heat buildup and water vapor condensation. The net free open area (NFOA) per lineal foot of soffit is as follows:
12” Sequoia Select Hidden Vented 10 sq in
10” Oxford Fully Vented 5.3 sq in
8” Beaded Vented 2.4 sq in
12” Fairweather Center Vented 2.3 sq in
12” Fairweather Fully Vented 7.1 sq in
FIRE RESISTANCE RATINGS:
Gentek vinyl siding products meet or exceed all building code requirements throughout the United States and Canada. In addition to meeting these code requirements, Gentek vinyl sidings have been fire rated by Underwriters Laboratories (UL) to be used in one-hour rated designed walls U026 and U032 and a two-hour rated wall, U301. UL inspects the manufacture of the vinyl products quarterly to certify that Gentek vinyl products are manufactured consistently. The vinyl products have been tested as follows:
Property ………………………………ASTM Test ……………………..Results
Average Burn Distance ………………D-635 ……………………………20mm
Average Burn Time …………………..D-635 …………………………..<5 seconds
Flash Ignition Temperature ………….D-1929 ………………………….752°F
Self Ignition Temperature ……………D-1929 ………………………….860°F
Flame Spread Index ………………….E-84 …………………………….15
Smoke Developed Index ……………..E-84 …………………………….<400
Fire Resistance ……………………….E-119……………………………1-hour rated*
………………………………………………………………………………2-hour rated*
* See UL Fire Resistance Directory Control No. 1N60. E-119 is equivalent to UL-263 and
E-84 is equivalent to UL-723.
Important fire safety information for the building trades, specifiers,
professionals and do-it-yourself installers:
When rigid vinyl siding is exposed to significant heat or flame, the vinyl will soften, sag, melt, or burn and may thereby expose the material underneath. Care must be exercised when selecting underlay materials because many underlays are made from organics that are combustible. You should ascertain the fire properties of any underlay prior to installation. All building materials should be installed in accordance with local, state and federal building codes and fire regulations.
WINDLOAD PROPERTIES:
All Gentek siding products are designed to withstand a minimum of 100 mph windloads and are suitable for most areas. The products can be used in areas with higher windloads,
but installation procedures, choice of product and building code jurisdiction are important factors to be considered. The windspeed rating (in mph) is calculated using VSI’s
windspeed calculation guidelines. Additional information is available if required.
BUILDING CODES:
Gentek vinyl products meet or exceed the following building code specifications:
ICC-ESR – 1133
CCMC – 06541-L
New York City MEA 132-94-M
FHA/HUD Minimum Property Standards
Classic Colours
Designer Colours
Products and colors may be slightly different from their appearance on this site due to a variance in monitor calibrations. Make final color selections using actual product samples. Not all products are offered in all colors and in all markets; see your sales representative for details. All specifications and designs subject to change without notice.
