Fair Oaks Premium Vinyl Siding
With simplicity and ease, Fair Oaks captures the elegant detail and timeless appeal of a freshly painted wood finish.
Take a closer look and you’ll see substantial structural upgrades that help Fair Oaks achieve style and strength beyond ordinary vinyl siding.
Product Features
Rolled Nail Hem
Fair Oaks is fortified with a rolled nail hem for extra-strong wall attachment. In laboratory tests simulating hurricane-force wind conditions, Fair Oaks withstood windloads up to 305 km/h (190 mph).*
Anchor-Tite Panel Locking System
An innovative Anchor-Tite™ Panel Locking System firmly secures each panel in place for outstanding structural integrity and wind resistance. |
Durable .044″ Panel Thickness
With a rugged .044” panel thickness, Fair Oaks promises enduring protection and beauty for your home. The low-gloss finish and subtle hardwood texture will stand up to harsh weather and keep its luxurious appearance year after year with very little upkeep!
Extra-Deep 5/8″ Butt Height
You may not realize it, but the siding’s butt height creates shadow lines that add dimension and style to a home – the deeper the butt height, the more dramatic the shadow lines appear. Fair Oaks’ generously proportioned 5/8″ butt height will create an attractive appearance, while also fortifying the integrity and strength of the siding.
Rich Hardwood Emboss
The low-gloss finish and subtle hardwood texture will stand up strong to harsh weather and keep its luxurious appearance year after year with very little upkeep! |
Colour-Matching Made Simple
Our Color Clear Through® system makes it easy to find the perfect color match for your exterior design. This special collection of colors ensures that all Gentek products – siding, soffit, fascia, trim, and rainware – will beautifully match throughout our vinyl, aluminum and steel product lines.
*Windload performance may vary by profile design.
Simple Upkeep
Fair Oak’s will dramatically reduce your exterior maintenance because it never needs to be painted. Just rinse occasionally with a garden hose to remove most airborne dust and dirt and restore your siding’s like-new beauty.
Investing in Your Home
Fair Oaks not only will create an enjoyable, worry-free exterior, but will heighten your home’s curb appeal as well. And in today’s market, a beautiful, low-maintenance finish can greatly enhance the value of your home.
Fade Protection
Featuring richer, darker colours fortified with ChromaTrue fade-defying technology. Gentek vinyl siding carries a lifetime limited warranty against fading. See printed warranty for more details.
A Lifetime of Protection
Fair premium vinyl siding is backed by a lifetime limited, non-prorated, transferable warranty with hail protection and lifetime fade coverage. For complete warranty information, including limitations, ask your dealer for a copy of the Gentek vinyl siding warranty.

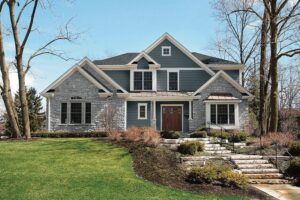

Gallery
Fair Oaks Vinyl Siding Architectural Specifications
Produced to precise tolerances using formulated compounds specifically designed for
the plastic building products industry according to ASTM D4216, meeting or exceeding the following:
Property…………………………. ASTM Test …………Results
Tensile Strength (psi)…………… D-638………………….6,700
Modulus of Elasticity (psi) ……….D-638 …………………410,000
Izod Impact (70°F)………………. D-256 …………………3.6 (ft-lb/in of notch)
Izod Impact (32°F) ……………….D-256 …………………2.0 (ft-lb/in of notch)
Flexural Strength (psi) ………….D-790 …………………14,000
Coefficient of Linear……………. D-696 ………………….5.3 x 10-5 (mm/mm °C)
Expansion ……………………………………………………2.9 x 10-5 (in/in °F)
Deflection Temperature
Under Load 264 psi (°C) ……….D-648 ……………………73
PRODUCT PHYSICALS:
All siding products, soffit panels and accessories are made with solid colour throughout. The siding products and accessories meet or exceed the ASTM Specification for Rigid Poly Vinyl Chloride (PVC) Siding D3679. All soffit products and associated accessories meet or exceed the ASTM Specification for Rigid (Unplasticized) Poly Vinyl Chloride (PVC) Soffit D4477.
The siding and soffit compound meets Class 2 requirements and conforms to weathering performances as described in ASTM 3679.
Colour: Spectrophotometer controlled
Gloss: Gardner gloss meter controlled
Lock: Dimensionally controlled
All products meet or exceed ASTM 3679 thickness (nominal) requirements:
Fair Oaks 0.044”
WARRANTY:
All Gentek vinyl siding brands carry a Lifetime Limited Warranty including fade and hail protection. Warranty is transferable if the home is sold. See printed warranty for complete details.
FIRE RESISTANCE RATINGS:
Gentek vinyl siding products meet or exceed all building code requirements throughout the United States and Canada. In addition to meeting these code requirements, Gentek vinyl sidings have been fire rated by Underwriters Laboratories (UL) to be used in one-hour rated designed walls U026 and U032 and a two-hour rated wall, U301. UL inspects the manufacture of the vinyl products quarterly to certify that Gentek vinyl products are manufactured consistently. The vinyl products have been tested as follows:
Property ………………………………ASTM Test ……………………..Results
Average Burn Distance ………………D-635 ……………………………20mm
Average Burn Time …………………..D-635 …………………………..<5 seconds
Flash Ignition Temperature ………….D-1929 ………………………….752°F
Self Ignition Temperature ……………D-1929 ………………………….860°F
Flame Spread Index ………………….E-84 …………………………….15
Smoke Developed Index ……………..E-84 …………………………….<400
Fire Resistance ……………………….E-119……………………………1-hour rated*
………………………………………………………………………………2-hour rated*
* See UL Fire Resistance Directory Control No. 1N60. E-119 is equivalent to UL-263 and
E-84 is equivalent to UL-723.
Important fire safety information for the building trades, specifiers,
professionals and do-it-yourself installers:
When rigid vinyl siding is exposed to significant heat or flame, the vinyl will soften, sag, melt, or burn and may thereby expose the material underneath. Care must be exercised when selecting underlay materials because many underlays are made from organics that are combustible. You should ascertain the fire properties of any underlay prior to installation. All building materials should be installed in accordance with local, state and federal building codes and fire regulations.
WINDLOAD PROPERTIES:
All Gentek siding products are designed to withstand a minimum of 100 mph windloads and are suitable for most areas. The products can be used in areas with higher windloads,
but installation procedures, choice of product and building code jurisdiction are important factors to be considered. The windspeed rating (in mph) is calculated using VSI’s
windspeed calculation guidelines. Additional information is available if required.
BUILDING CODES:
Gentek vinyl products meet or exceed the following building code specifications:
ICC-ESR – 1133
CCMC – 06541-L
New York City MEA 132-94-M
FHA/HUD Minimum Property Standards
Classic Colours
Designer Colours*
*Double 5″ Clapboard and Double 5″ Dutch Lap not offered in Designer Colours in British Columbia and Alberta.
Products and colors may be slightly different from their appearance on this site due to a variance in monitor calibrations. Make final color selections using actual product samples. Not all products are offered in all colors and in all markets; see your sales representative for details. All specifications and designs subject to change without notice.
