Woodgrain Series 2000 Aluminum Siding

While you may be drawn to Woodgrain 2000 for its classic good looks, you'll also appreciate its durability and strength.
Beginning with a strong aluminum core, each heavy-duty panel is coated with a specially formulated LoMar polyester finish to create a resilient exterior. Woodgrain 2000 will maintain its beautiful appearance season after season, despite exposure to harsh weather elements such as heat, cold, rain and snow.
Product Features
Performance Engineered
Woodgrain 2000 aluminum siding is performance-engineered to shield your home from outdoor elements, such as harsh winds and water, and other destructive weather. Unlike wood, compressed particle board or fiber cement, Woodgrain 2000 aluminum siding won’t absorb moisture.
Heavy-Duty Construction
Resilient aluminum core is coated with a specially formulated polyester finish.
Added Dimension
The extra-deep 1/2″ butt height of Woodgrain 2000 aluminum siding adds greater dimension and style with dramatic shadow lines.
Authentic Woodgrain Emboss
Beautiful low-gloss finish achieves natural appeal and excellent durability; requires minimal upkeep.
Superior Finished Look
While fiber cement and compressed particle boards typically require caulked joints, Woodgrain 2000 aluminum siding’s “seams” are crisp and clean.
Colour-Matching Made Simple
Our Color Clear Through® system makes it easy to find the perfect color match for your exterior design. This special collection of colors ensures that all Gentek products – siding, soffit, fascia, trim, and rainware – will beautifully match throughout our vinyl, aluminum and steel product lines.
Simple Upkeep
Woodgrain 2000 aluminum siding requires minimal maintenance. Unlike fiber cement that may require periodic recaulking and repainting, or wood siding that typically needs repainting every five to seven years, Woodgrain 2000 demands not much more than an occasional rinse with a garden hose – perfect for today’s lifestyle.
Warranty Protection
Gentek aluminum siding products are backed by a 40 year limited warranty; see printed warranty for details.
Gallery
Woodgrain 2000 Aluminum Architectural Specification
ALUMINUM METAL PROPERTIES:
Alloy or equivalent …………………………………………AA3000
Specific Gravity ……………………………………………2.72
Modulus of Elasticity (ksi) …………………………………10,000
Melting Range (°F) …………………………………………175-1210
COATING PROPERTIES: Gentek aluminum products are manufactured with AA3000 series alloy (or equivalent). Both sides of the aluminum are cleaned with a specially formulated cleaner. The cleaned aluminum is then treated with an acid solution containing chrome to enhance corrosion resistance and coating adhesion.
Plastisol (Poly) Topcoat: The topside of the pretreated aluminum is coated with a thermoset polyester polymer which is dried and cured at about 450 ºF., forming a hard but flexible and weatherable coating. Total coating thickness is approximately 18 micrometers.
Plastisol (PVC) Topcoat: This highly weatherable, flexible, chemical-resistant thermoplastic polymer is melted and fused on the aluminum metal at temperatures of 390°F. The coating is applied either with a striated pattern or smooth finish having an average film thickness of 3.0 mils.
Fluoropolymer (PVDF2): This thermoplastic polymer has excellent chemical and fade resistance. The coating is applied at 0.9 mil. The system is cured at a minimum temperature of 475°F. This polymer system conforms to the high industry standards of Kynar 500® and Hylar 5000®. The main criteria for these standards is that the paint formulation must contain a minimum of 70% PVDF2. Many fluoropolymer coatings on the market do not meet the high quality and performance standards required by Kynar 500 and Hylar 5000 specifications.
WEATHERING AND TESTING: Gentek products are tested for superior adhesion and forming properties. Gentek’s stringent colour specifications allow batch to batch mixing of product. Product testing includes colour, film thickness, gloss, hot water/ impact test, freezer/impact test, salt spray, humidity testing (1000 hours) and outdoor exposure (2 years).
COMPLIANCE: All Gentek soffits comply with CAN/CGSB-93.2-M91. In addition, the aluminum alloys used meet the ULC Standard CAN4-S114-M80, defining the noncombustibility of aluminum alloys.
WARRANTY: 40 Year Limited Warranty. Warranty is transferable.
CONTACT WITH DISSIMILAR MATERIALS AND CORROSIVE ENVIRONMENTS:
Direct contact of aluminum products with certain dissimilar materials, or contact with water runoff from dissimilar materials, is likely to result in corrosion. Accordingly, care should be taken during installation to avoid such contact of aluminum with dissimilar materials, including: dissimilar metals (copper, zinc, steel, etc.), concrete, stucco, asbestos siding, pressure
treated/pretreated lumber, masonry, corrosive non-metallic materials, and roofing materials or roofing systems containing metallic granules or st or other corrosive environments may result in corrosion of the product.
NOMINAL GAUGES (mm):
Profile …………………………………………………….Gauge

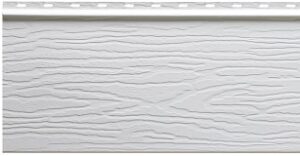

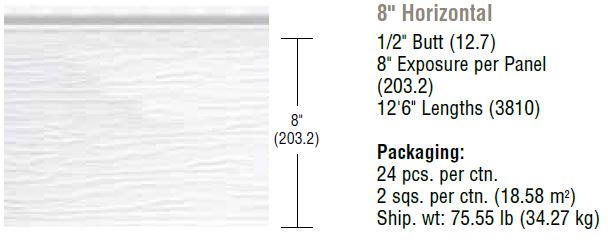

8″ Horizontal ……………………………………………….0.53

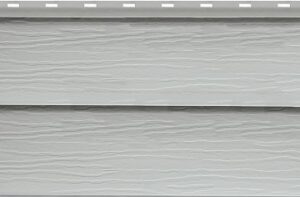

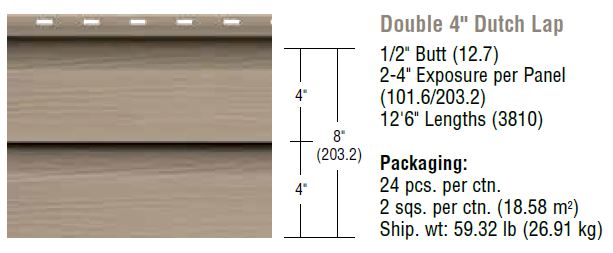

D4 Dutch Lap……………………………………………….0.40

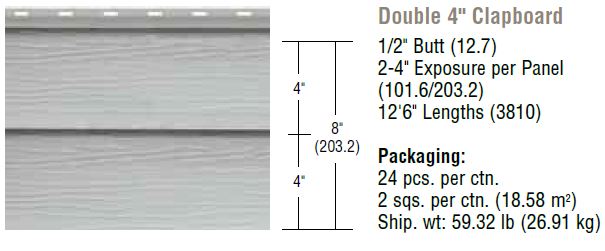

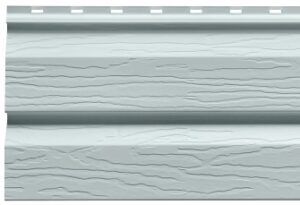

D4 Clapboard……………………………………………….0.40 & 0.44

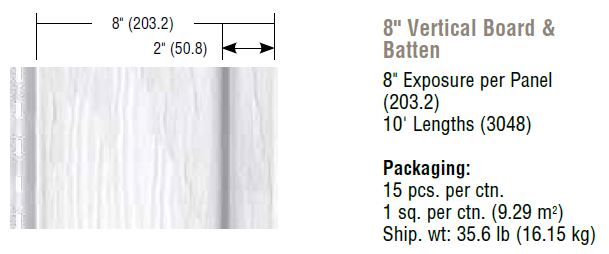

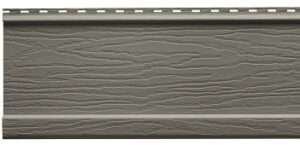

8″ Vertical Board and Batten ……………………………..0.50

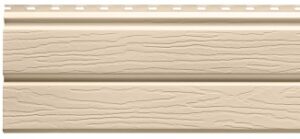

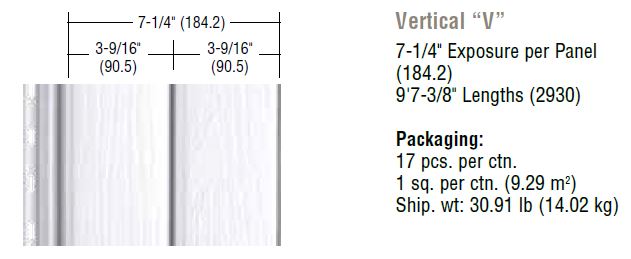

Vertical “V” ………………………………………………….0.40
Colour Collection
Products and colors may be slightly different from their appearance on this site due to a variance in monitor calibrations. Make final color selections using actual product samples. Not all products are offered in all colors and in all markets; see your sales representative for details. All specifications and designs subject to change without notice.
