Sierra Steel Ultra Premium Steel Siding
Sierra steel siding creates the ultimate shield for your home.
Pounding rain, severe wind, freezing cold and blistering heat are no match for the commanding strength of steel. Each pretreated galvanized steel panel is virtually “weather-sealed” with a resilient Kynar PVDF finish, ensuring long-lasting beauty and protection.
Product Features
Design Versatility

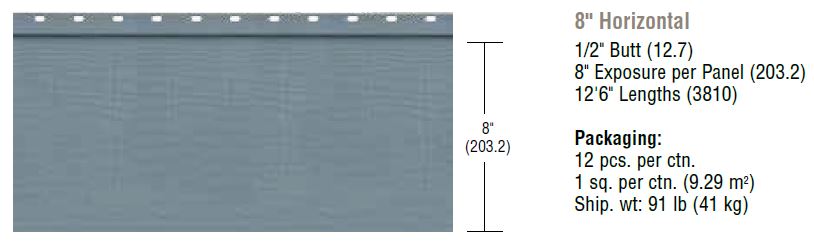

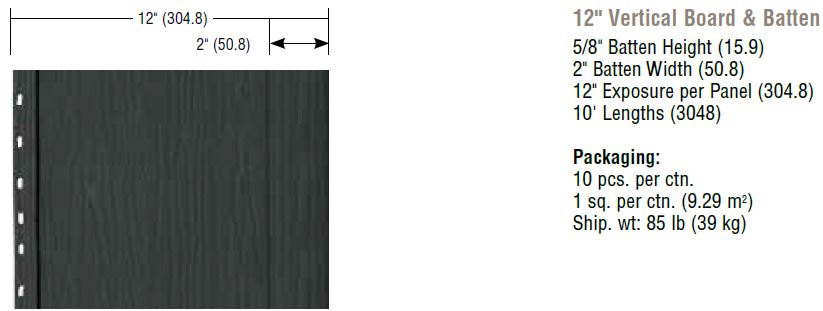

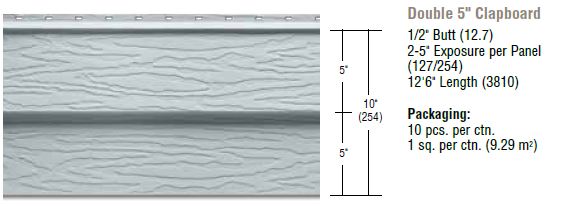

Four distinctive profiles; Double 4″, Double 5″, 8″ Horizontal and 12″ Vertical Board & Batten. The high-style warmth of each panel is further enhanced with natural-looking wood textures and colours that mimic nature. .
High-Performance Kynar PVDF Coating System
Protecting and preserving the steel core, the resilient fluoropolymer resin provides a luxurious, low-gloss colour that resists scratches, fading, chalking, pitting, chipping and more. Sierra Steel’s proprietary coating also is specially formulated for enhanced texture. Resists mildew and fungus growth – Kynar does not have UV-sensitive organic material needed for mildew growth
Impact Resistant
Constructed of roll-formed 29 gauge Galvalume AZ-50 steel for maximum resistance to hail damage and denting.
Built Weather-Tough
Unlike wood, compressed particle board or fiber cement, Sierra Steel won’t absorb moisture. Steel siding also resists warping, chalking, fading and brittleness and is independently tested to withstand hurricane force winds exceeding 160mph.
Straight Wall Lines
The low thermal expansion is less than 1/8″ over a 12′ panel for high dimension stability.
Upscale Appearance
Deep 1/2″ panel projection creates greater dimension and style. The PVDF coating system resists dirt buildup, staining and mildew.
Environment Friendly
Sierra Steel steel siding is 100% recyclable; no painting, caulking or issues with silica dust.
Simple and Safer to Install
Installs easily; unlike fiber cement, Sierra Steel does not involve hazards from silica dust.
Colour-Matching Made Simple
Our Color Clear Through® system makes it easy to find the perfect color match for your exterior design. This special collection of colors ensures that all Gentek products – siding, soffit, fascia, trim, and rainware – will beautifully match throughout our vinyl, aluminum and steel product lines.
Carefree Maintenance
Unlike fiber cement that may require periodic recaulking and repainting, just a simple rinse with a garden hose will remove most dust and dirt to restore the like-new beauty.
Investing in Your Home
Sierra Steel not only will create an enjoyable, worry-free exterior, but will heighten your home’s curb appeal as well. And in today’s market, a beautiful, low-maintenance finish can greatly enhance the value of your home.
Lifetime Protection
Sierra Steel siding is backed by a lifetime limited, non-prorated, transferable warranty with 50 year hail and 35 year chalk and colour change protection. For complete warranty information, including limitations, please see the Sierra Steel siding warranty.
Gallery
Sierra Steel Architectural Specifications
GENTEK STEEL SIDING
METAL PROPERTIES:
Steel or Equivalent ……………………………………………………………..AZ-50
Specific Gravity …………………………………………………………………….7.8
Minimum Ultimate Strength (KSI)………………………………………. 45-55
Minimum Yield (KSI) ………………………………………………………….40-50
Minimum Elongation (%)…………………………………………………… 25-35
Modulus of Elasticity (KSI) ………………………………………………….29,500
Coefficient of Thermal Expansion (in/in °F) …………………………….0.000006
Melting Range (°F) Steel ……………………………………………………..>2700
Melting Range (°F) Zinc……………………………………………………… 786
Thermal Conductivity at 77°F (btu-in/ft2-hr-°F)…………………………. 555
COATING PROPERTIES:
Gentek steel siding products are manufactured with AZ-50. Both sides of the steel sheet are cleaned with a specially formulated cleaner, water rinsed and then coated with an environmentally safe chemical pretreatment to enhance corrosion protection and coating adhesion.
The pretreated surface is coated with a thermoset corrosion-resistant polymer. This corrosion-resistant polymer is topcoated with the following polymeric systems:
Plastisol (PVC) Topcoat: This highly weatherable, flexible, chemical-resistant thermoplastic polymer is melted and fused at temperatures of >390°F. The coating is applied with a striated pattern or smooth finish having an average film thickness of 3.0 mils.
Fluoropolymer (PVDF2): This thermoplastic polymer has excellent chemical and fade resistance. The coating thickness is 0.9 mil. The system is cured at a minimum temperature of 475°F. This polymer system conforms to the high industry standards of Kynar 500® and Hylar 5000®. The main criteria for these standards is that the paint formulation must contain a minimum of 70% PVDF2. Many fluoropolymer coatings on the market do not meet the high quality and performance standards required by Kynar 500 and Hylar 5000 specifications.
WARRANTY:
All Gentek steel siding brands carry a Lifetime Limited Warranty. Warranty is transferable if home is sold. See printed warranty for complete details.
CONTACT WITH DISSIMILAR MATERIALS:
Direct contact of steel products with certain dissimilar materials, or contact with water runoff from dissimilar materials, is likely to result in corrosion. Accordingly, care should be taken during installation to avoid such contact of steel with dissimilar materials, including: dissimilar metals (copper, zinc, steel, etc.), concrete, stucco, asbestos siding, pressure treated/pretreated lumber, masonry, corrosive non-metallic materials, and roofing materials or roofing systems containing metallic granules or strips.
PRODUCT PHYSICALS:
Product.…………………Coating.…………………… Type Thickness*
Sierra Steel …………….PVDF2 ………………………….0.017
SteelSide ………………..PVC ……………………………0.017
* 29 Gauge
BUILDING CODES:
Gentek steel products meet or exceed the following building code specifications:
ICC-ES Legacy – Report #97-64
AAMA 1406-86
FHA/HUD Minimum Property Standards
Colour Collection
Products and colors may be slightly different from their appearance on this site due to a variance in monitor calibrations. Make final color selections using actual product samples. Not all products are offered in all colors and in all markets; see your sales representative for details. All specifications and designs subject to change without notice.
